speed gates

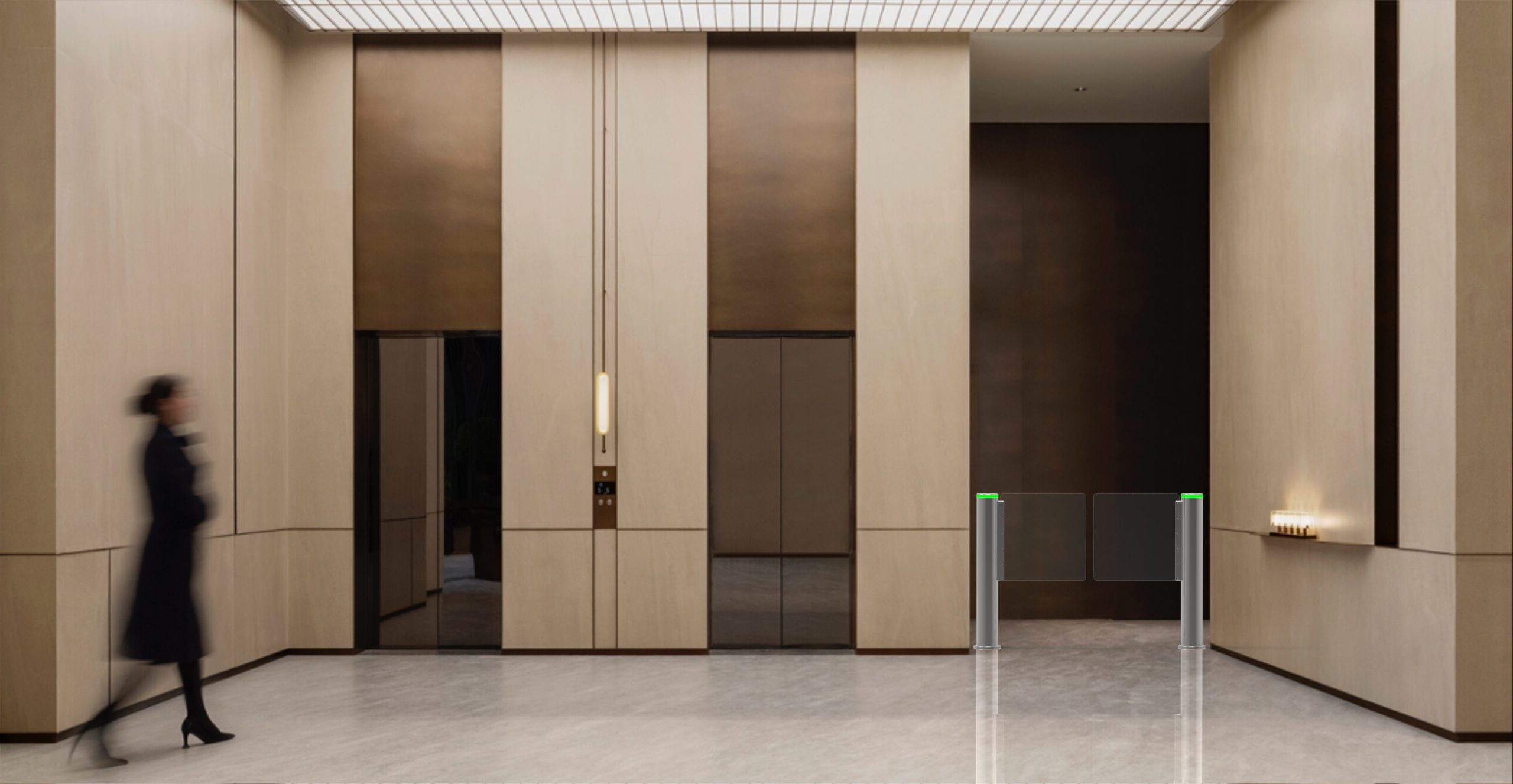

eA Glass Swing Gate
The EA Glass Swing Gate is the simplest and most affordable way to control and restrict people flow access from 500 mm to a 900 mm clear opening.
Features
• Available in passage widths up to 900mm
• DDA compliant
• Choice of surface finishes
• Robust and reliable design
• Glass or optional plastic panel
• Can be controlled from most access systems
Description
The contemporary style EA Glass Swing Gate is the simplest and most affordable way to control and restrict access available from 500 to 900 mm clear opening.
The EA Glass Swing Gate is perfectly suited for access control where wider access than the standard unit is required.
The EA Glass Swing Gate is suitable for disabled and VIP-purpose accesses, which are recommended to be installed next to tripod turnstiles to provide a lane for the main flow.
EA Speed Lane Wide Turnstiles
The EA Speed Lane Wide is fundamentally the same as our standard EA Speed Lane model, however it incorporates clever telescopic extended wings for applications where wider access is required.
Having a passage width of 900mm this model speed gate provides an ideal DDA compliant solution for wheel chair access as well as equipment such as cleaning machines, trolleys etc.
In addition, this wide variation model can be configured in a row with standard width Speed Lane turnstiles as both of these models share the same aesthetics and cabinet footprint.
Modes of operation
All of the EA speed gate turnstile range can be controlled in either manual or automatic modes.
manual mode
In the manual mode, the glass panels are opened/closed according to the command from a control panel often positioned at a reception desk or a remote position.
automatic mode
In the automatic mode, the glass panels are opened/closed determined by the signal from an access control system such as a proximity ID card, key fob, biometric reader etc.
Speed Gate Operation Configurations
The Swing Lane speed gate can operate in two ways: either normally closed or normally open. Both access directions either in or out are free to swing open when the turnstile is powered down. (battery backup options are also available)
normally closed
The most common way of configuration, the glass panels are always in the closed position, and only open when the signal to do so is given by the access control.
normally open
The glass panels are always in the open position, and only close when a person is detected entering the turnstile that has not presented an acceptable form of ID to the access control.
